Beskrivelse

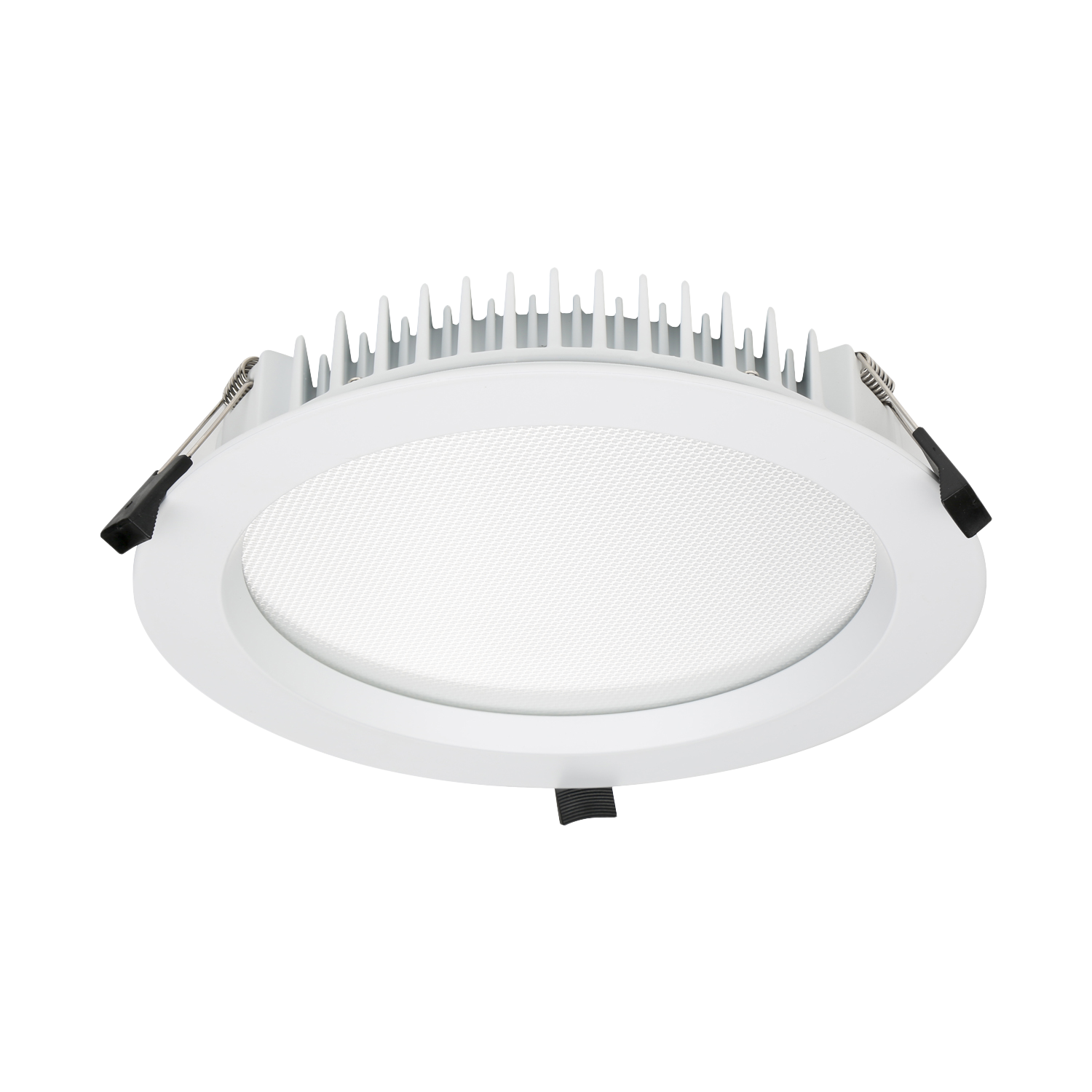

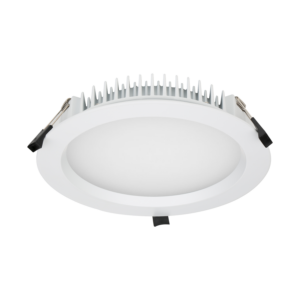

Antares downlight have high lumen output and PMMA diffuser with even light distribusion. Comes with a switch option between 3000K(default), 4000K and 5700K. All data is based on 4000K.
Antares 18W
Art. no. 2126-90-3
nå 946,-før 1183,-
Antares downlight have high lumen output and PMMA diffuser with even light distribusion. Comes with a switch option between 3000K(default), 4000K and 5700K. All data is based on 4000K.
Tilleggsinformasjon
| Vekt | I/A |
|---|---|
| Dimensjoner | I/A |
| Bruksområder | Butikk, Generelt, Hotell, Kontor, Restaurant, Showrom, Skole |
| Beam Angle | 90 |
| Heigth [mm] | 45 |
| Mounting area | Innfelt, Tak |
| Color | White |
| CCT | 3/4/5700, 3000_5700 |
| effect | 18 |
| Lens Difuser | Opal |
| Light Control | Depending on Driver |
| lumen | 1550, 1710 |
| Cold Lumen [lm] | 1750 |
| Application | No |
| CRI [>] | 80 |
| symbol_ce | Yes |
| Energy | A++ – A |
| symbol_ip | IP20 |
| spec_driver_pwrdrv | 18 |
| product_family | Antares 18W |
| symbol_protection | 2 |
| Socket / Cap-Base | N/A |
| voltage | 230V 50Hz |
| width-mm | 228 |
| Cut-out [mm] | 200-210 |
Relaterte produkter
Lys Teknisk
| Lyskilde | LED (built in) |
| Lumen ut (lm) | 1550 |
| Lumen LED (tc=25) | 1750 |
| Spredningsvinkel [°] | 90 |
| Fargetemperatur [K] | 3/4/5700 |
| Fargegjengivelse [CRI/Ra] | 80 |
| Fargekode | 830-840-857 |
| Fargetoleranse [SDCM] | 3 |
| Optikk | Opal |
Elektrisk Data
| Dimmetype | Depending on Driver |
| Systemeffekt [W] | 18 |
| Lumen/W | 91 |
| Spenning [V] | 230V 50Hz |
| Isolasjonsklasse | 2 |
| Maks belastning pr kurs - C10 | 67 |
| Maks belastning pr kurs - C16 | 107 |
| Sokkel | N/A |
| Strøm LED [mA] | 500 |
| Spenning LED Min [V] | 29 |
| Spenning LED Max [V] | 33 |
Montering / Tilkobling
| Montering | Innfelt, Tak |
| Utsparring [mm] | 200-210 |
Produkt
| IP-grad | IP20 |
| Vandal klasse | IK06 |
| Forventet Levetid | L80B50: 50.000 |
| Farge | White |
| Høyde [mm] | 45 |
| Bredde [mm] | 228 |
